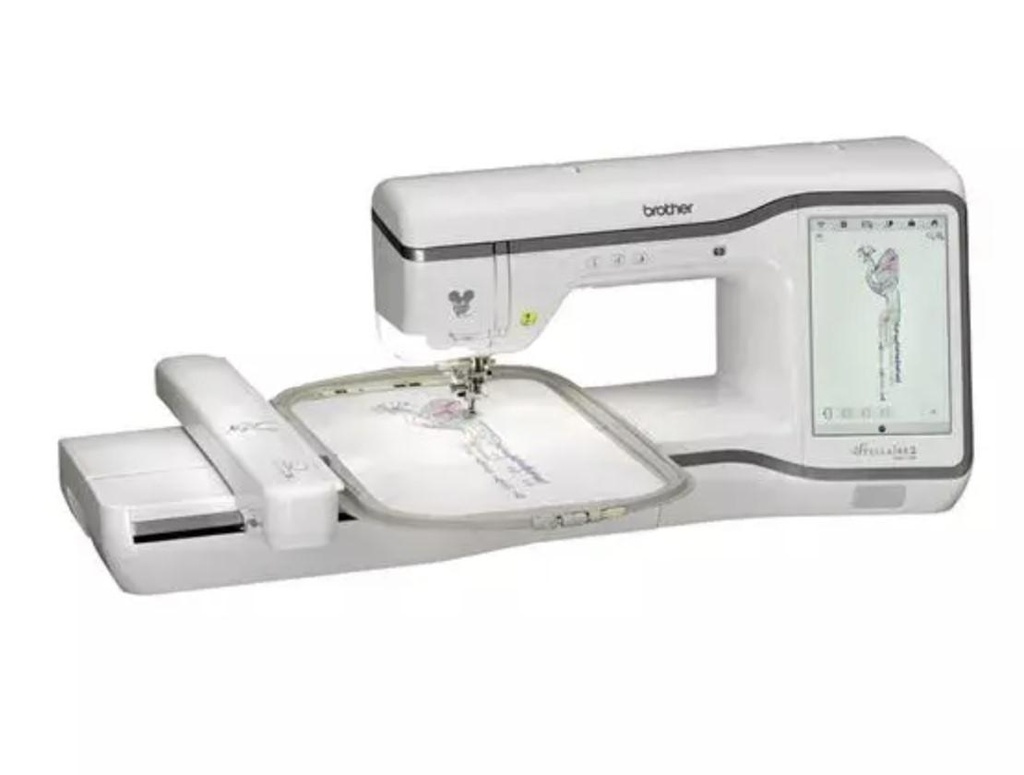

Stellaire 2 Innov-is XJ2
Sewing & Embroidery Machine
9.5” x 14” embroidery area
Design Center
This product does not participate in Free Shipping.
Call for Shipping Cost or pick up at the Patch.
LCD Display
The Stellaire2 lineup features a spacious 10.1" HD LCD display for crystal clear viewing. With a straight forward user interface and zoom/adjustment features, you'll be able to view an expandable library of built-in tutorials.
Advanced Multi-Function Foot Controller
Designed to be more ergonomic for the foot & accessible for toggle functions. The Multi-Function Foot Controller has an updated hill & toe kick ankle to reduce the spring load of the main pedal for easier stepping & less fatigue.
Sewing & Embroidery
With over 780 built-in embroidery designs, 760 built-in sewing stitches, modern technology, and the integration of Artspira1, the Stellaire2 Innov-ís XJ2 sewing and embroidery machine will be your go-to machine.
Generous Workspace
The Stellaire2 XJ2 has room to create with 56 square inches of workspace and has a healthy 11.25" from the needle to arm. The large embroidery area of 9.5" x 14" can handle just about anything your imagination throws at it.
Needle Plate Removal
The Stellaire2 XJ2 Needle Plate is easy to remove. If you need to clean, raise or change the straight stitch plate, there are no screws to remove.
Tapered Stitches
Tapered Stitches are an excellent feature for topstitching, applique, sewing & creating decorative stitches, enabling you to create all sorts of beautiful embellishments.
Compact Digital Dual Feed Foot
Compact Digital Dual Feed Foot is a belt driven foot, the belt can be set to move faster or slower to get the perfect feed ratio. Use this foot for multiple layers, minkies, knits, slippery fabrics or any combination of fabrics that is difficult to sew with the J or N foot.
Sashiko Stitches
Sashiko Stitches can elevate your quilted projects to new levels. These stitches are carefully crafted to create patterns and motifs on your quilted projects.
| Automatic Height Adjustment (AHA) | Yes |
|---|---|
| Available Stitch Types | Chain Stitch, Lock Stitch, Straight Stitch, Zigzag Stitch, Stretch Stitch, Overlock Stitch, Running Stitch, Back Stitch, Satin Stitch, Outline Stitch, Tacking Stitch |
| Back to Beginning Key | Yes |
| Built-In Lettering Fonts | 4 |
| Built-In Stitch Selections (Stitches) | 760 |
| Button Hole Styles | 16 |
| Color-Coded Thread System | Yes |
| Independent Bobbin Winding Motor | Yes |
| Knee Lifter | Yes |
| Maximum Sewing Speed (Stitches Per Minute) | 1050 |
| Media Type USB | Yes |
| Multi-Directional Sewing | Yes |
| My Custom Stitch Feature | Yes |
| Pivot Function | Yes |
| Quick Reference Stitch Guides | Yes |
| Reinforcement/reverse Stitches | Yes |
| Sideways Sewing | Yes |
| Speed Control | Yes |
| Stitch Length (mm) | 5 |
| Stitch Width (mm) | 7 |
Downloadable Disney Designs
Enjoy the magic of 101 downloadable Disney designs, featuring Mickey Mouse, Minnie Mouse, Goofy, and Pluto. Plus, your favorite characters from Frozen, Finding Nemo, and Cars! Brother customers get exclusive access to even more Disney and Disney•Pixar embroidery designs through the iBroidery.com Download Center2.
Couching Embroidery Foot
Embroider letters with yarn into a cool 3-D effect using the Couching Embroidery Foot. You can create upper- and lower-case letters (approx. 3” tall) and numbers; all characters are also resizable for even more flexibility.
Artspira Integration
With an array of embroidery designs and tools right in the palm of your hand, you can wirelessly transfer your creations right to your Brother wireless-enabled embroidery machine for even more creative flexibility. The Artspira Mobile App1 will have you creating on the go.
Design Database Transfer
The Stellaire2 Innov-ís XJ2 is wireless enabled. You can receive software update notifications and send embroidery files from your PC to your machine via the free downloadable Design Database Transfer1 (no USB required). This allows for easy data management for all your designs and projects.
My Design Snap App
Use the My Design Snap mobile app1 to turn line art, handwriting, or printed clip art into embroidery data.
My Stitch Monitor App
Be alerted when it’s time to change the thread or when your project is complete with the My Stitch Monitor App1.
Easy Echo and Deco-Fill Stippling
The Easy Echo and Deco-Fill stippling feature (on the Embroidery Edit tab) will add decorative textures to any project.
My Design Center
The My Design Center has 30 basic shapes, 30 closed shapes, 30 open shapes, and 17-line types that can be used by themselves or combined to create one-of-a-kind embroidery projects. In addition, My Design Center has more selection choices, such as line types and region motifs, for almost any project.
| Adjustable Design Icon Size Setting | Yes |
|---|---|
| Adjustable Embroidery Speed Settings | Yes |
| Appliqué Creator Function | Yes |
| Automatic Feed Thread Cutting | Yes |
| Basting Stitch Before Embroidery | Yes |
| Built-In Alphabet Designs | Yes |
| Built-In Border Function | Yes |
| Built-In Designs | 889 |
| Built-in Embroidery Designs featuring Disney/Pixar Characters | 101 |
| Built-in Embroidery Lettering Alphabet Fonts | 26 |
| Cap Frame Capability | No |
| Color Shuffling Function | Yes |
| Computer Connectivity | Yes |
| Curved Text on Screen Editing | Yes |
| Drag and Drop Editing | Yes |
| Embroidery Position Marker | Yes |
| Eyelet Threading System | Yes |
| Frame Designs - Shapes | 10 |
| Frame Designs - Stitches | 14 |
| InnovaChrome LED Thread Color System | No |
| InnovEye Technology | No |
| Light and Audio Cues to Alert Finished Designs | No |
| Light and Audio Cues to Alert Thread Breakage | No |
| Light and Audio Cues to Alert Thread Change | No |
| Light and Audio Cues with On/Off Modes | No |
| Link Multiple Machines | No |
| Maximum Embroidery Area | 9.5" x 14" |
| Maximum Embroidery Speed (spm) | 1050 |
| Maximum Zoom (%) | 200 |
| Monogramming Font Styles | Yes |
| My Custom Design Feature | Yes |
| Numbered Threading Guides | Yes |
| Onscreen Automatic Density Adjustment | Yes |
| On-Screen Editing | Yes |
| On-Screen Help | Yes |
| Pattern Rotating Increments | 0.1 Degree, 10 Degrees, 90 Degrees, 1 Degree |
| Print and Stitch Technology | No |
| Programmable Monochrome Embroidery | No |
| Resume Function | Yes |
| Sewing Decorative Stitches with Embroidery Arm Attached | Yes |
| Sewing Speed Range - Frames | 1050 |
| Space Reduction among Embroidery Alphabets | Yes |
| Speed Adjustment | Yes |
| Standard Included Frames | 9.5" x 9.5, 5" x 7", 4" x 4", 9.5" x 14" |
| Thread Anchor | No |
| Thread Wiper | Yes |
| Trial Position/Layout Function | Yes |
No Sew Sewing
The savvy No Sew Sewing feature allows you to remove different design aspects before you start so you can see what you do not want to stitch.
Included Accessories
- Zigzag Foot “J”
- Advanced Monogramming Foot “N+”
- Overcasting Foot “G”
- Zipper Foot “I”
- Buttonhole Foot “A”
- Blind Stitch foot “R”
- Button Fitting foot “M”
- Compact Dual Feed Foot
- Regular Dual Feed Foot
- Straight Stitch Foot
- Free Motion Open Toe quilting foot “O”
- Free Motion Quilting Foot “C”
- Free Motion Echo Quilting Foot “E”
- Embroidery Foot “W+” with LED pointer
- 1/4" Piecing Foot with guide
- Adapter
- Screw (small)
- Needle set (75/11 2 needles, 90/14 2 needles, 90/14 2 needles: Ball point needle (gold colored)), Twin needle (2/11 needle), Ball point needle set (75/11 2 needles: Ball point needle for embroidery)
- Spool cap (small)
- Spool cap (medium) × 2
- Spool cap (large)
- Thread spool insert (mini king thread spool)
- Cleaning brush
- Scissors
- Embroidery frame with decal set 14" × 9 1/2"
- Embroidery frame with decal set 9 1/2" × 9 1/2"
- Embroidery frame with decal set 7" × 5"
- Embroidery frame with decal set 4" × 4"
- Embroidery positioning sticker sheets × 4
- Lens calibration sheet
- Embroidery bobbin thread (#60, white)
- Stabilizer material
- Grid sheet set
- Chalk pencil
- Bobbin center pin and instruction sheet
- Accessory case
- Telescopic thread guide
- Spool support
- Spool pin × 2
- Screw and washer
- Spool cap (XL) × 2
- Spool holder × 2
- Spool cap base × 2
- Spool felt × 2
- Ring × 4
- Embroidery couching foot “Y”
- Yarn guide for embroidery couching
- Yarn threader
- Operation Manual
- Quick Reference Guide
- Bobbin clip × 10
- Spool felt
- Spool net × 2
- Embroidery needle plate cover
- Touch pen (stylus)
- Knee lifter
- Advanced multi-function foot controller
- Standard bobbin case (green marking on the screw)
- Alternate bobbin case (no color on the screw)
- Straight stitch needle plate
- Cord guide bobbin cover
- Bobbin cover (with mark)
- Bobbin cover (on machine)
- Eyelet punch
- Screwdriver (S/L)
- Disc-shaped screwdriver
- Multi-purpose screwdriver
- Bobbin × 10
- Seam Ripper
Included Accessories:
Zigzag Foot “J”
Advanced Monogramming Foot “N+”, Overcasting Foot “G”, Zipper Foot “I”, Buttonhole Foot “A”, Blind Stitch foot “R”, Button Fitting foot “M”, Compact Dual Feed Foot, Regular Dual Feed Foot (on Compact Dual Feed Foot), Straight Stitch Foot, Free Motion Open Toe quilting foot “O”, Free Motion Quilting Foot “C”, Free Motion Echo Quilting Foot “E”, Embroidery Foot “W+” with LED pointer, 1/4" Piecing Foot with guide, Adapter, Screw (small), Needle set (75/11 2 needles, 90/14 2 needles, 90/14 2 needles: Ball point needle (gold colored)), Twin needle (2/11 needle), Ball point needle set (75/11 2 needles: Ball point needle for embroidery), Bobbin × 10 (One bobbin is in machine), Seam Ripper, Scissors, Cleaning brush, Eyelet punch, Screwdriver (S/L), Disc-shaped screwdriver, Multi-purpose screwdriver, Spool cap (small), Spool cap (medium) × 2 (One spool cap is on machine), Spool cap (large), Thread spool insert (mini king thread spool), Bobbin clip × 10, Spool felt (on machine), Spool net × 2, Embroidery needle plate cover, Touch pen (stylus), Knee lifter, Advanced multi-function foot controller (Main foot controller, Side pedal, Mounting plate, Mounting screw × 2), Standard bobbin case (green marking on the screw) (on machine), Alternate bobbin case (no color on the screw), Straight stitch needle plate, Cord guide bobbin cover, Bobbin cover (with mark) (on straight stitch needle plate), Bobbin cover (on machine), Embroidery frame with decal set 36 cm (H) × 24 cm (W) (approx. 14 inches (H) × 9-1/2 inches (W)), Embroidery frame with decal set 24 cm (H) × 24 cm (W) (approx. 9-1/2 inches (H) × 9-1/2 inches (W)), Embroidery frame with decal set 18 cm (H) × 13 cm (W) (approx. 7 inches (H) × 5 inches (W)), Embroidery frame with decal set 10 cm (H) × 10 cm (W) (approx. 4 inches (H) × 4 inches (W)), Embroidery positioning sticker sheets × 4, Lens calibration sheet, Embroidery bobbin thread (#60, white), Stabilizer material, Grid sheet set, Chalk pencil, Bobbin center pin and instruction sheet, Accessory case, Telescopic thread guide, Spool support, Spool pin × 2, Screw and washer, Spool cap (XL) × 2, Spool holder × 2, Spool cap base × 2, Spool felt × 2, Ring × 4, Embroidery couching foot “Y”, Yarn guide for embroidery couching, Yarn threader, Operation Manual, Quick Reference Guide
Included Accessories:
Zigzag Foot “J”
Advanced Monogramming Foot “N+”, Overcasting Foot “G”, Zipper Foot “I”, Buttonhole Foot “A”, Blind Stitch foot “R”, Button Fitting foot “M”, Compact Dual Feed Foot, Regular Dual Feed Foot (on Compact Dual Feed Foot), Straight Stitch Foot, Free Motion Open Toe quilting foot “O”, Free Motion Quilting Foot “C”, Free Motion Echo Quilting Foot “E”, Embroidery Foot “W+” with LED pointer, 1/4" Piecing Foot with guide, Adapter, Screw (small), Needle set (75/11 2 needles, 90/14 2 needles, 90/14 2 needles: Ball point needle (gold colored)), Twin needle (2/11 needle), Ball point needle set (75/11 2 needles: Ball point needle for embroidery), Bobbin × 10 (One bobbin is in machine), Seam Ripper, Scissors, Cleaning brush, Eyelet punch, Screwdriver (S/L), Disc-shaped screwdriver, Multi-purpose screwdriver, Spool cap (small), Spool cap (medium) × 2 (One spool cap is on machine), Spool cap (large), Thread spool insert (mini king thread spool), Bobbin clip × 10, Spool felt (on machine), Spool net × 2, Embroidery needle plate cover, Touch pen (stylus), Knee lifter, Advanced multi-function foot controller (Main foot controller, Side pedal, Mounting plate, Mounting screw × 2), Standard bobbin case (green marking on the screw) (on machine), Alternate bobbin case (no color on the screw), Straight stitch needle plate, Cord guide bobbin cover, Bobbin cover (with mark) (on straight stitch needle plate), Bobbin cover (on machine), Embroidery frame with decal set 36 cm (H) × 24 cm (W) (approx. 14 inches (H) × 9-1/2 inches (W)), Embroidery frame with decal set 24 cm (H) × 24 cm (W) (approx. 9-1/2 inches (H) × 9-1/2 inches (W)), Embroidery frame with decal set 18 cm (H) × 13 cm (W) (approx. 7 inches (H) × 5 inches (W)), Embroidery frame with decal set 10 cm (H) × 10 cm (W) (approx. 4 inches (H) × 4 inches (W)), Embroidery positioning sticker sheets × 4, Lens calibration sheet, Embroidery bobbin thread (#60, white), Stabilizer material, Grid sheet set, Chalk pencil, Bobbin center pin and instruction sheet, Accessory case, Telescopic thread guide, Spool support, Spool pin × 2, Screw and washer, Spool cap (XL) × 2, Spool holder × 2, Spool cap base × 2, Spool felt × 2, Ring × 4, Embroidery couching foot “Y”, Yarn guide for embroidery couching, Yarn threader, Operation Manual, Quick Reference Guide
